| Typical composition (optimal mix) | 15–25% clay · 20–35% silt · 40–60% sand + fibre |
|---|---|
| Density (compacted rammed earth) | 1,800–2,200 kg/m³ |
| Compressive strength (rammed earth) | 1.5–5 N/mm² |
| Compressive strength (stabilised CEB) | 3–10 N/mm² |
| Thermal conductivity | 0.50–1.00 W/(m·K) |
| Specific heat capacity | 850–1,050 J/(kg·K) |
| Embodied energy (adobe) | ~0.3–0.5 MJ/kg (vs. 5 MJ/kg fired brick) |
| Reference standard | NF P13-901 (France) · DIN 18945-18947 (Germany) |
In 1946, Hassan Fathy is commissioned by the Egyptian government to design the new village of Gourna (Luxor), to resettle the 3,000 inhabitants of the historic village living above the tombs of the Valley of the Nobles. Fathy chooses adobe — sun-dried mud brick — drawing on traditional Nubian architecture: massive walls, adobe barrel vaults built without formwork, internal courtyards for natural ventilation. The project fails socially (the residents refuse to move) but becomes a technical manifesto: it proves that adobe can produce sophisticated, climate-adapted architecture at almost zero material cost.
Fathy's book, "Architecture for the Poor" (1973), is read in the West as romanticism about the primitive. That's a misreading. Fathy was no nostalgic: he was a technician who calculated the thermal mass of walls, the chimney effect of wind towers (malqaf), the self-build capacity of end users. His contribution is a construction system verifiable by the parameters of engineering — not a poetic metaphor.
Composition and particle size of construction earth
Not all earth is suitable for construction. An optimal construction earth contains four particle-size fractions in controlled proportion: clay (particles < 2 μm, phyllosilicate minerals such as illite, montmorillonite, kaolinite — providing plasticity and cohesion through electrostatic action), silt (2–63 μm, finely ground quartz and feldspar grains — filling the voids between clay and sand), sand (63 μm–2 mm — the load-bearing skeleton), and any gravel or fine gravel (> 2 mm — reducing shrinkage on drying).
Particle-size analysis is done with the water sedimentation test (the finger test, or jar test): earth is shaken with water in a glass jar and left to settle. After 8 hours, the four layers are visible. Earth with more than 30% clay will shrink excessively on drying and needs correction with sand or fibre. Earth with less than 10% clay will have poor cohesion — it crumbles rather than compacting. The drop test: a block of earth pressed by hand, dried for 24 hours and dropped from 1 metre onto a hard floor. If it holds together without breaking, the earth is suitable for construction. It's not a regulatory standard — but it's routinely used on site in countries with a tradition of earth construction.
The varieties of raw earth
Adobe (sun-dried mud brick)
Adobe is unfired mud brick, made by mixing earth with water and straw (or an equivalent natural fibre — sisal, jute, hemp), shaping it in wooden moulds and leaving it to dry in the sun for 2–4 weeks. Standard sizes vary by culture: 30×15×10 cm in the Andean region, 40×20×10 cm in North Africa. The straw adds resistance to shrinkage cracking and reinforces the brick like fibres in a matrix: it reduces linear shrinkage from 3–8% to 1–3%. Compressive strength of traditional adobe: 0.5–2.5 N/mm² — low in absolute terms but sufficient for masonry up to 3–4 storeys in low-seismicity zones, provided the geometry is right (minimum thicknesses of 40–50 cm, moderate storey heights). In seismic zones, unreinforced adobe is vulnerable: the brittle behaviour of unreinforced masonry is the leading cause of deaths in earthquakes in Peru, Ecuador and Afghanistan.
Pisé / Rammed Earth (earth compacted in formwork)

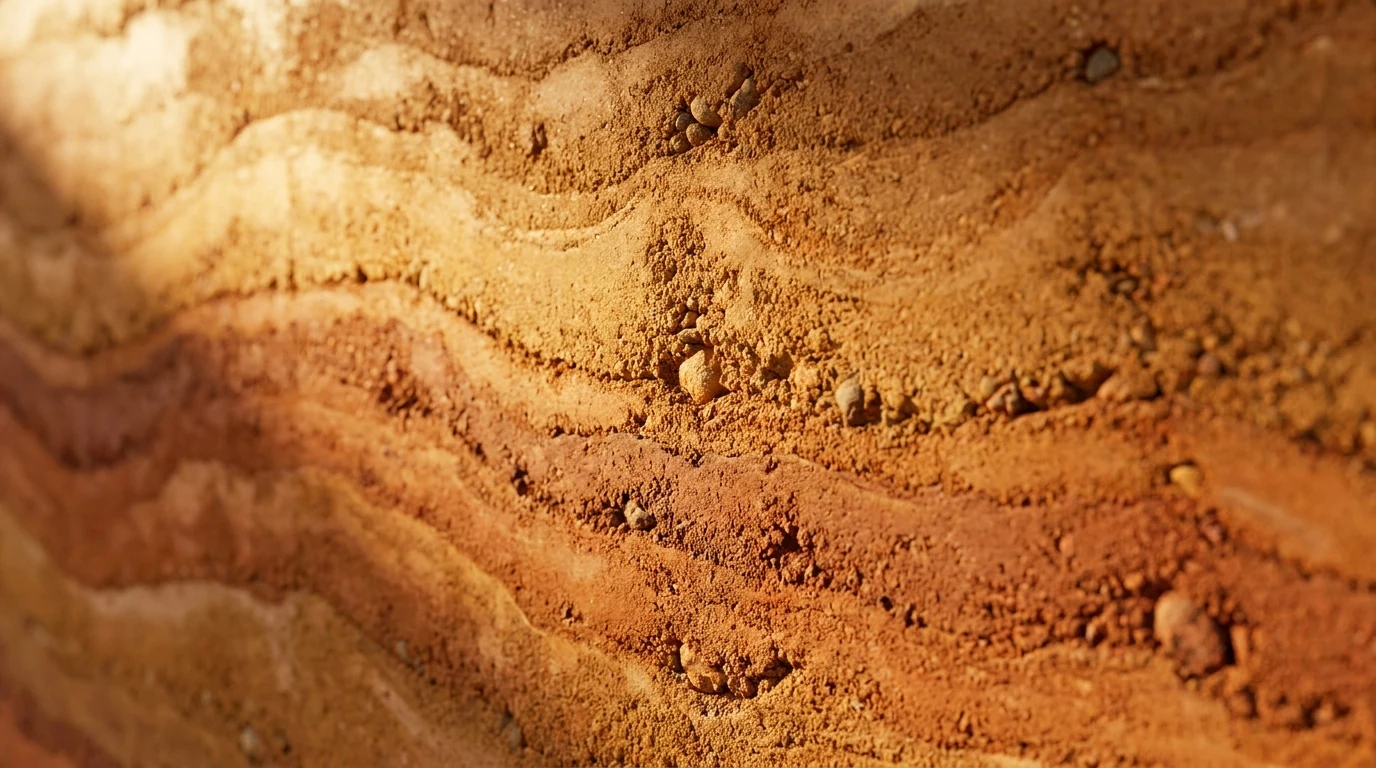

Rammed earth is earth compacted in 10–15 cm layers inside metal or timber formwork, using pneumatic or electric rammers. Each layer is compacted to a 30–50% reduction in thickness before the next is poured. Final density is 1,800–2,200 kg/m³. Compressive strength: 1.5–5 N/mm² (unstabilised), 5–15 N/mm² (with 5–8% cement). Contemporary rammed earth (CSEB, Compressed Stabilised Earth Block, in compact form; or monolithic rammed-earth walls as used by Kengo Kuma, Zumthor, Martin Rauch) uses local earth selected for its particle-size distribution, with small additions of lime or cement for stabilisation. Peter Zumthor's Earth Wall for the Swiss Sound Box (Hannover 2000) is a high-quality exposed rammed-earth wall: visible layering from each compaction pass, a sanded surface, a deliberately "geological" look.
CEB (Compressed Earth Block, stabilised or unstabilised)
The Compressed Earth Block (CEB) is produced with mechanical or hydraulic presses (a manual CINVA-Ram or hydraulic presses of 40–100 t): damp earth is pressed at 2–5 MPa in metal moulds, producing blocks of standard size (30×14×10 cm, the typical AFNOR format). Pressing increases density compared with adobe (1,800–2,100 kg/m³) and mechanical strength (2–8 N/mm² unstabilised). Stabilisation with lime (3–6%) or cement (4–8%) brings strength up to 4–12 N/mm², compatible with 3–4-storey buildings in low-seismicity zones. The French standard NF P13-901 defines four strength classes (CEB-1, CEB-2, CEB-3, CEB-4) with standardised test requirements. The CINVA-Ram machine (developed by the Chilean engineer Raúl Ramírez, 1952) is still the main self-build tool in Latin America and Africa.
Torchis (earth on a timber frame)
Torchis (or wattle-and-daub on a cane lattice, the equivalent of French colombage) is the mixed-structure version: a lightweight timber or bamboo frame is clad with clay earth mixed with straw. The earth isn't structural — the load-bearing structure is the frame; the earth is the infill and insulation. The strength of torchis walls is determined by the timber structure, not by the earth. The advantage: thinner walls (10–20 cm vs. 40–60 cm for rammed earth), a more controllable structural material, better seismic behaviour thanks to timber's ductility. Norman pan de bois, German half-timbered houses (Fachwerkhaus), and Sahelian bamboo-lattice dwellings are all variants of torchis using different local materials.
Cob (hand-shaped earth)
Bauge — cob in English — is earth with straw and water mixed by hand or foot into large batches, then shaped directly on site to form massive walls without formwork or bricks. The wall is built in horizontal layers of 20–30 cm, left to dry before the next level is laid. Cob walls are 50–80 cm thick, with a compressive strength of 0.5–2 N/mm². The tradition is strong in Brittany (thousands of 18th–19th-century rural cob buildings), in Devon (UK), and in parts of the Apennines. Durability is excellent if the base is protected from rising damp (a draining foundation) and the top is protected by a generous roof overhang. As English craftsmen put it: "a good hat and good boots" — a wide roof and a draining foundation.
Light earth (with straw or fibre)
Light earth (Leichtlehm in German) is a mix of clay slip (clay diluted in water) with straw, wood shavings, hemp shives or various plant fibres. The fibre content is very high (40–70% by volume): the result is a material with a density of 300–800 kg/m³ and thermal conductivity of 0.10–0.25 W/(m·K) — used as a bio-based insulator rather than as a load-bearing structure. It's cast in formwork or used in prefabricated blocks to fill timber frames (the standardised German Leichtlehmbauweise system, DIN 18946). Unlike rammed earth, it has no load-bearing function: it's the insulating component of a timber-frame structural system.
Earth stabilised with lime or cement (3–8%)
Stabilising earth with small percentages of lime or Portland cement significantly changes its mechanical properties and durability. Lime (3–5% by dry weight) reacts with the clay minerals in a pozzolanic reaction (flocculation and cementation): plasticity drops, strength increases by 50–100%, and sensitivity to water decreases. Portland cement (4–8%) produces a fast set and higher strengths (up to 10–15 N/mm²), but reduces breathability and increases the carbon footprint. Lime-stabilised earth is the optimal solution when the goal is to increase durability without losing the material's breathable, hygroscopic properties. Cement-stabilised earth is used for floors and foundation plinths in humid tropical zones, where resistance to erosion is critical.
Behaviour over time
The main vulnerability of raw earth is water — not load. A rammed-earth wall kept dry is virtually eternal: it doesn't degrade chemically, doesn't oxidise, doesn't carbonate, doesn't produce alkali-aggregate reactions. The Great Mosque of Djenné (Mali) — the largest adobe structure in the world, 75×75 m, 16 m tall — is replastered every year by the community in a collective ceremony that keeps the protective coating maintained. It's a social maintenance system, not a technical one: it has worked for centuries because it's built into the local culture.
In European climates, the challenge is different: driving rain, freeze-thaw cycles, high relative humidity. Exposed raw-earth masonry needs adequate external protection: NHL2 hydraulic lime plaster or lime-hemp render (breathable, water-repellent by capillarity), a generous roof overhang (at least 40 cm), a waterproof foundation plinth with a capillary barrier. Unstabilised raw earth has very low compressive strength once saturated with water (0.1–0.5 N/mm²): the design has to prevent saturation, not tolerate it.
| Dimension | Score | Assessment |
|---|---|---|
| 🌿 Environmental | 9/10 | Almost zero embodied energy: 0.3–0.5 MJ/kg for adobe (vs. 5 MJ/kg fired brick, 25 MJ/kg steel). No firing, no chemical binder in the raw version. 100% recyclable: the earth can be redissolved in water and reused. Naturally regulates indoor humidity (hygroscopic capacity: 30–50 g/kg of material). High thermal mass: it smooths out daily temperature swings, cutting heating and cooling energy demand by up to 15–20% in Mediterranean climates (CSTB Marne-la-Vallée data). |
| ⚖️ Ethics | 9/10 | A local supply chain by definition: the earth is sourced at zero distance (often from the excavation of the site itself). No global extractive industry, no intercontinental transport, no controversy over labour conditions in third countries. The material is inherently democratic: it belongs to no industry and has no speculative market value. One caveat: cement stabilisation introduces an industrial component and lowers the ethical score to 7–8/10. |
| 🏘️ Social | 8/10 | An accessible material, self-buildable with minimal training: it lowers housing costs in rural areas and developing countries. Immense cultural value: 30% of the world's historic buildings are made of raw earth (UNESCO, 2018). Cultural prejudice in Europe against "mud houses" is the main obstacle — not the technique. In Italy, the tradition survives in Puglia (trulli with earthen foundations), Tuscany and Sardinia, but it isn't recognised in current building regulations. |
| 💶 Economic | 8/10 | Raw material cost close to zero if the earth comes from site excavation (savings on disposing of the spoil: €20–40/t at landfill). CEB produced on site with a manual press costs €0.10–0.30 per block. Laying requires specific skill and takes longer than traditional brickwork. In Europe, the costs of specialist design and structural verification raise the total cost: a contemporary European rammed-earth building (of the Martin Rauch type) costs €1,500–2,500/m², similar to CLT construction. |
| Average score | 8.5/10 |
Uses through history
Mesopotamia and the ziggurat (4th–1st millennium BC): The Sumerian ziggurat is built entirely of unfired bricks — adobe — with an outer facing of fired or glazed brick. The Great Ziggurat of Ur (around 2100 BC, Ur-Namma) has a base platform of 64×45 m in solid adobe, still visible in its original form today. Iraq, between the Euphrates and the Tigris, has neither stone nor timber: earth is the only material available in quantity. The dwellings of Çatalhöyük in Anatolia (around 7500 BC) already use structural adobe — they are the oldest urban raw-earth structures documented by archaeology.
Africa and pre-Columbian America (from the 1st millennium): The Great Mosque of Djenné (Mali, first built in the 13th c., rebuilt in adobe in its current form in 1907) is the largest unfired-brick structure in the world: 75×75 m in plan, with 16 m minarets. The pueblo towns of New Mexico (Taos Pueblo, 11th c.) are built in multi-storey adobe — parts of them have been continuously inhabited for 1,000 years. Chan Chan, the Chimú capital in Peru (AD 900–1470), covers 20 km² of adobe construction. Hassan Fathy's work sits within this tradition as a deliberate act of retrieval.
Contemporary earth architecture (1980–today): Martin Rauch (Austrian) is the European master of contemporary rammed earth: he has built the Lehm-Tonwerk (a rammed-earth factory, Schlins, Austria, 2021), the Sant'Arbogast chapel (Vorarlberg, 2013), and numerous private residences in unstabilised compacted earth, verified through experimental testing. In Australia, rammed earth is regulated by the AS HB 195 standard and widely used in arid and semi-arid climate zones. In Morocco, the maisons en terre supply chain is supported by state programmes for low-cost rural housing. In Italy, research is coordinated by ENEA and the University of Cagliari — where, in 2023, the first characterisation laboratory for Sardinian rammed earth opened.
Reference figures for the project
| Unstabilised adobe — Rc | 0.5–2.5 N/mm² |
|---|---|
| Unstabilised rammed earth — Rc | 1.5–5 N/mm² |
| CEB stabilised with 5% lime — Rc | 3–8 N/mm² |
| CEB stabilised with 8% cement — Rc | 6–15 N/mm² |
| Rammed earth density — range | 1,800–2,200 kg/m³ |
| Rammed earth thermal conductivity | 0.50–1.00 W/(m·K) |
| Adobe embodied energy | ~0.3–0.5 MJ/kg |
| Minimum rammed-earth wall thickness (1 storey) | 30–40 cm |
| Reference European standards | NF P13-901 (FR) · DIN 18945–18947 (DE) |
Research and the contemporary frontier
In Europe, the main obstacle to the spread of raw earth is regulatory: no Eurocode governs it. Designers must fall back on national standards (NF in France, DIN in Germany, the New Zealand standards NZS 4297–4299) or on case-by-case technical assessment procedures. RILEM Technical Committee 274-TCE (Earth Construction) is working to harmonise test methods (for determining compressive strength, elastic modulus, and water sensitivity) to lay the groundwork for a future EN standard. A draft of the test methods was published in 2023.
On the seismic front — the main challenge for adobe in earthquake-prone areas — research by PUCP (Pontificia Universidad Católica del Perú) and CERESIS has developed reinforcement systems using native bamboo canes, sisal mesh and recycled-PET geogrids. Full-scale shaking-table tests show that adobe reinforced with bamboo mesh can withstand a PGA of 0.35g — enough for Peru's seismic zone 3. The cost of reinforcement is around €2–5/m² of wall: affordable even for the poorest rural communities.
In Italy, the TERRE project (Terra per Riqualificazione Residenziale, ENEA 2021–2024) has trialled reusing excavated earth from urban construction sites as raw material for CEB and finishing plasters. The potential is enormous: Italy's high-speed rail sites alone produce 30–50 million m³ of excavated earth a year, today almost entirely disposed of at landfill or used as road embankment fill. Turning even 5% of it into construction material would supply Italy's entire natural-building rural sector for years.
